홈 /제품 소개/진동 교반기 시스템/ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty

ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty

1
MOQ
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
사인 힘: 10000N
진동 파: 사인, 무작위, 충격
진동 방향: 세 방향 무료 진동
가속도 센서: 1 PC
입력 채널: 1 채널
평가된 막힘: 10000N
주파수 범위: 3-3000Hz
정격 가속도: 1000m/s2
정격 속도: 1.8m/s
정격 변위: 51mm
최대 로딩: 270kg
이동 코일 무게: 14kg
코일 치수 이동: Φ240mm
동적 원의 공명: 높은 단계 축 공명 주파수
자속 누설: 낮은
강조하다:

ANSI C136.31-2018 Vibration Shaker System

,

10000N Sine Force Vibration Test Equipment

,

1 Year Warranty Electrodynamic Shaker
기본 정보
원래 장소: 광동, 중국
브랜드 이름: ASLI
인증: CE,Third party calibration qualification report
모델 번호: ES-10
결제 및 배송 조건
제품 설명
ANSI C136.31-2018 High Frequency Vibration Test Equipment
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 0
Technical Parameters of Horizontal Expander
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 1
Key Features
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for superior eccentric load capacity
  • Trunnion isolation foundation designed for convenient mobile installation
  • Advanced moving system technology ensures high reliability of dynamic circle
  • Innovative duct design enhances cooling efficiency
  • High static stiffness and small dynamic stiffness balloon improves bearing capacity and low-frequency performance

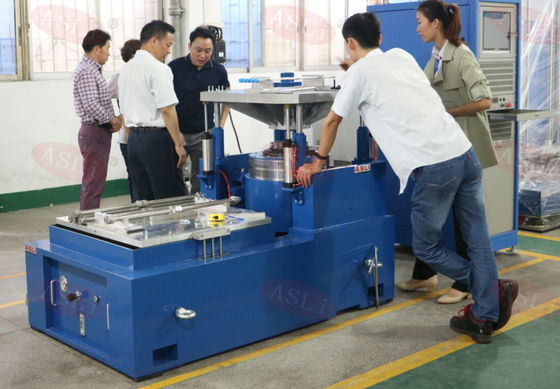

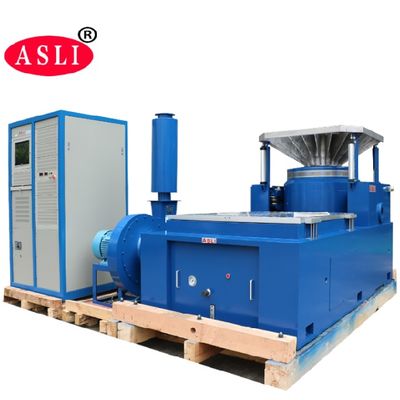

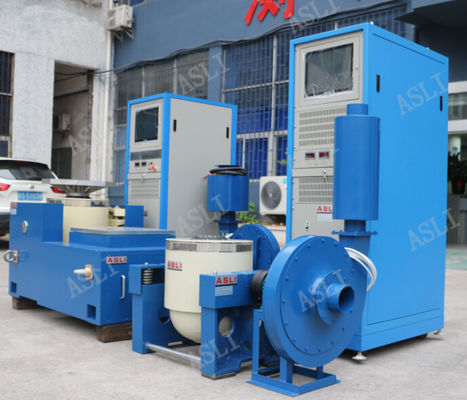

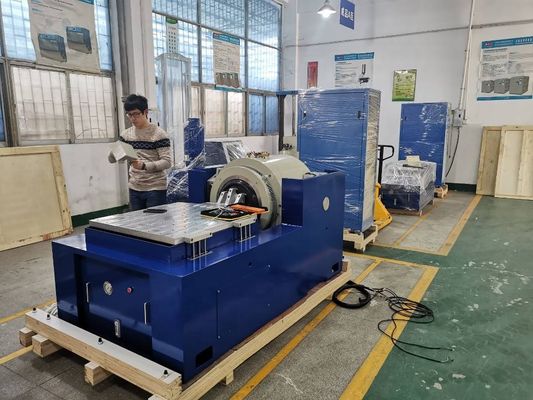

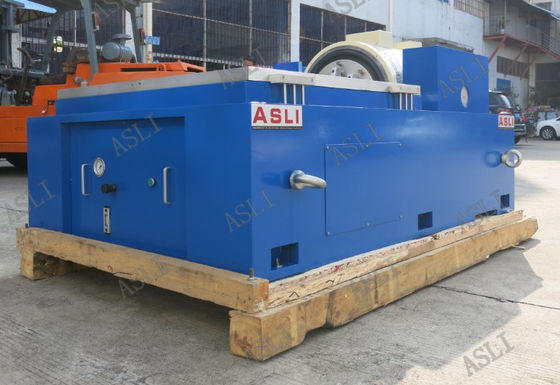

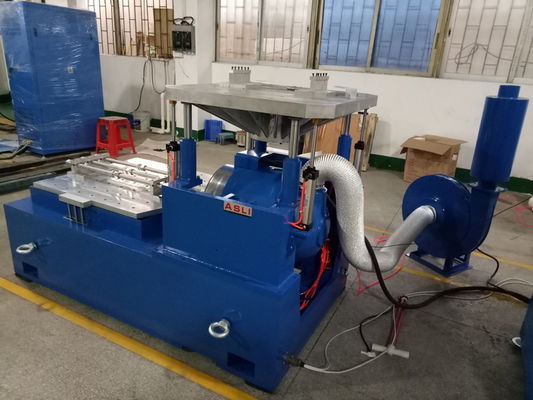

Product Images
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 2
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 3
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 4
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 5
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 6
ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty 7
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about ANSI C136.31-2018 high frequency vibration test equipment, please don't hesitate to send your inquiry.
