홈 /제품 소개/진동 교반기 시스템/Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing

Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing

1
MOQ
$26,890
가격
Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
진동 방향: 수직 진동
진동력: 20kn
제어 방법: 컴퓨터 제어
가속: 100g
주파수 범위: 3 ~ 3500Hz
이동 코일 무게: 30kg
전원 유형: 전자
정격 사인력: 10000N (ES-10), 20000 (ES-20), 30000N (ES-30), 40000N (ES-40)
정격 가속도: 1000m/s2
정격 속도: 1.8 m/s
정격 변위: 70mm (ES-10), 80mm (ES-20), 11100mm (ES-30), 100mm (ES-40)
최대 로딩: 270kg (ES-10), 300kg (ES-20), 450kg (ES-30), 500kg (ES-40)
이동 코일 무게: 14kg (ES-10), 30kg (ES-20), 40kg (ES-30), 50kg (ES-40)
코일 치수 이동: φ240mm (ES-10), φ320mm (ES-20), φ450mm (ES-30, ES-40)
주파수 범위: 3-3000Hz (ES-10, ES-20), 3-2800Hz (ES-30, ES-40)
강조하다:

20KN Vibration Test Machine

,

ISTA 3A Vibration Shaker System

,

100g Vibration Test Equipment
기본 정보
원래 장소: 광동, 중국
브랜드 이름: ASLI
모델 번호: ES-20
결제 및 배송 조건
제품 설명

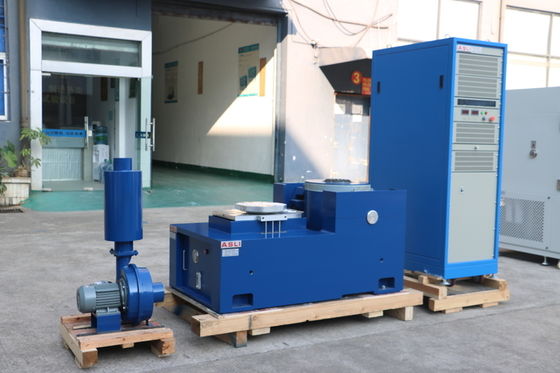

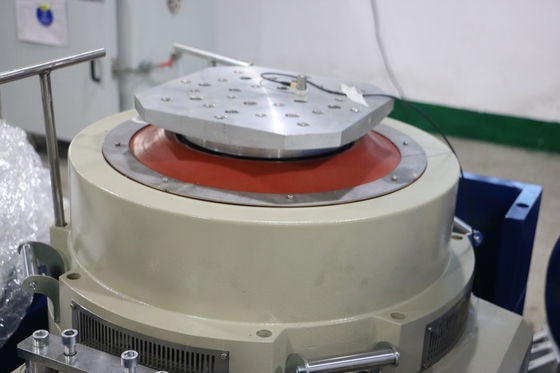

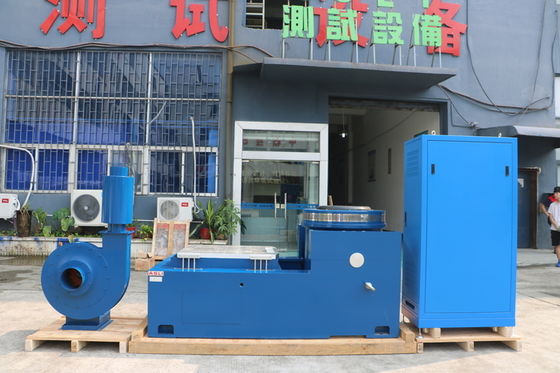

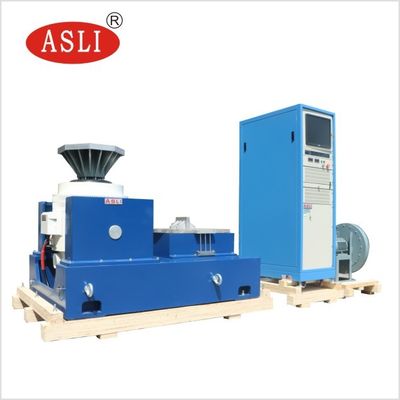

Electromagnetic High Frequency Horizontal Vertical Vibration Test Machine
This vibration test equipment is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves aerospace, communications, electronics, electrical, and home appliance industries. The platform complies with various test specifications including IEC, MIL-STD, JIS, and ASTM standards.
Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 0
Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving coil (Kg) 14 30 40 50
Dimension of Moving coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag with large static stiffness and small dynamic stiffness for superior dynamic performance
  • Rapid self-examination diagnosis and chain protection for high safety and reliability
  • Air bag isolating and damping device eliminates need for special foundation while reducing vibration transmission
  • Compatible with horizontal and vertical expansion platforms
  • Works with various vibration controllers for simple operation

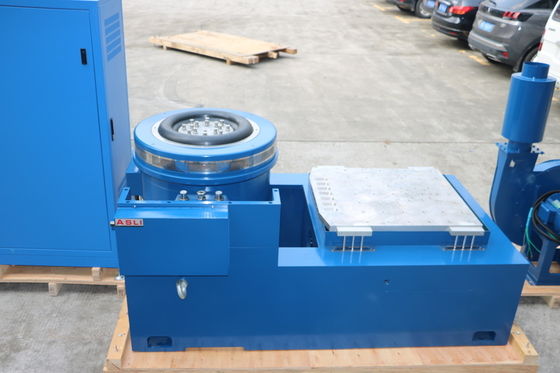

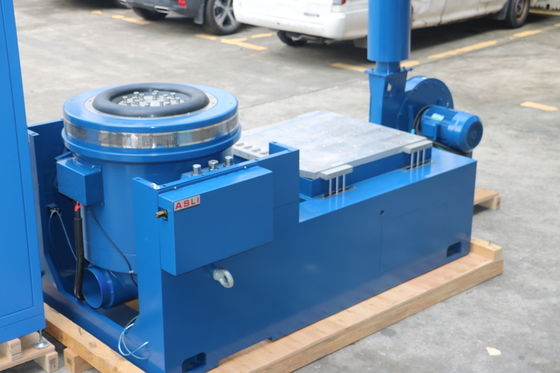

Horizontal Stand Features
  • Small loading bench achieves higher acceleration and working frequency
  • Integral horizontal bench and vibration bench for easy installation and adjustment
  • Static pressure track with V-shape design resists slope and bias-loading
  • Built-in oil pump with optimized structure for easy operation
Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 1 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 2
Packing & Delivery
Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 3
Professional, environmentally friendly, and efficient packaging ensures the safety of your goods during transportation.
Company Profile
Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 4 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 5 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 6 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 7 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 8 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 9
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our CE-certified horizontal and vertical vibration testers are industry-leading products.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, with 10mm foam between machine and case, enclosed in standard export plywood case.
Q2. What is your terms of payment?
A: 50% T/T deposit, with balance paid before delivery after product and package photos are provided.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP options available.
Q4. How about your delivery time?
A: Typically 30-60 days after receiving advance payment, depending on order specifics.
For more information about our Electromagnetic High Frequency Horizontal Vertical Vibration Test Machine, please contact us.
