Dynamic Shaker Table/vibration Tester

1
MOQ
Dynamic Shaker Table/vibration Tester
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
최대 속도: 1.6m/s
이동 코일 무게: 3.5kg
냉각 Fan 전원: 3kw
전원 공급 장치: AC380V
진동 방향: 수직+수평
정격 사인력: 3000-120000 n
평가된 막힘: 3000-120000 n
주파수 범위: 3-3500Hz
정격 가속도: 1000m/s2
정격 변위: 25-51 mm
최대 로딩: 100-1100 kg
코일 치수 이동: φ150-c 500 mm
전원 유형: 전자
움직이는 코일 무게 범위: 3.5-90 kg
정격 속도: 1.6-1.8 m/s
강조하다:

3.5kg Moving Coil Vibration Tester

,

1 Year Warranty Dynamic Shaker Table

,

3kw Cooling Fan Vibration Shaker System

기본 정보
원래 장소: 광동, 중국
브랜드 이름: ASLI
모델 번호: ES 시리즈
결제 및 배송 조건
제품 설명

Dynamic Shaker Table/vibration Tester



Technical Parameters

Model

Rated Sine

Force (N)

Rated Random

Force (N)

Frequency

Range (Hz)

Rated Acceleration  (m/s2)

Rated Speed (m/s)

Rated displacement

(p-p)mm

Max. Loading (Kg)

moving coil (Kg)

Dimension of

Moving coil (mm)

ES-3

3000

3000

3-3500

1000

1.6

25

100

3.5

Φ150

ES-3a

3000

3000

3-3500

400

1.6

40

120

9

Φ230

ES-6

6000

6000

3-3500

1000

1.6

25

180

6.5

Φ230

ES-6a

6000

6000

3-3500

1000

1.6

51

250

12

Φ230

ES-10

10000

10000

3-3000

1000

1.8

51

270

14

Φ240

ES-20

20000

20000

3-3000

1000

1.8

51

300

30

Φ320

ES-30

30000

30000

3-2800

1000

1.8

5l

450

40

Φ450

ES-40

40000

40000

3-2800

1000

1.8

51

500

50

Φ450

ES-50

50000

50000

3-2700

1000

1.8

51

750

50

Φ450

ES-60

60000

60000

3-2700

1000

1.8

51

750

60

Φ450

ES-100

100000

100000

3-2500

1000

1.8

51

1000

90

Φ450

ES-120

120000

120000

3-2200

1000

1.8

51

1100

90

Φ500



Technical parameters of horizontal expander:

Dynamic Shaker Table/vibration Tester 0



technical parameters of vertical expander:

Dynamic Shaker Table/vibration Tester 2

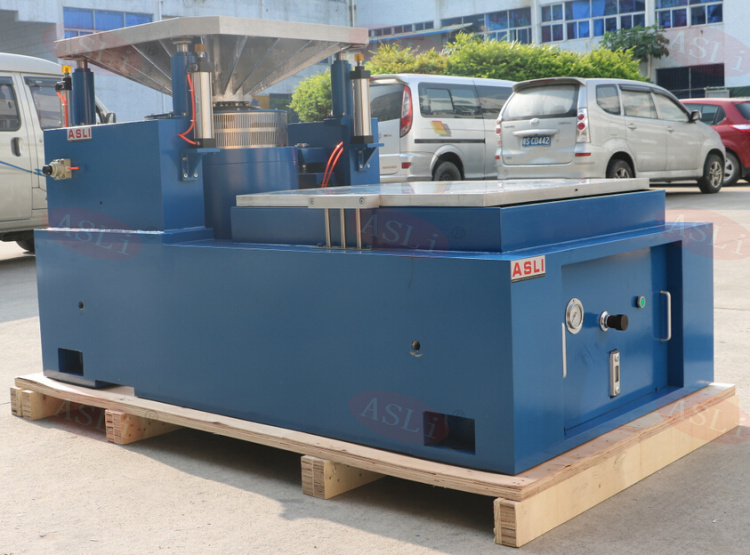

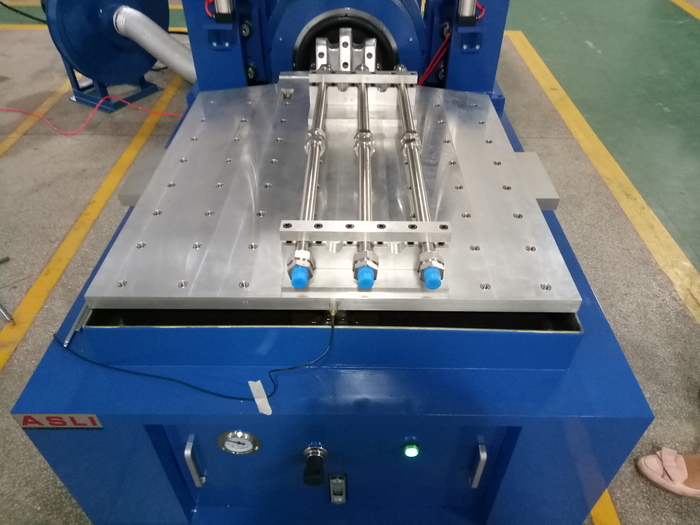

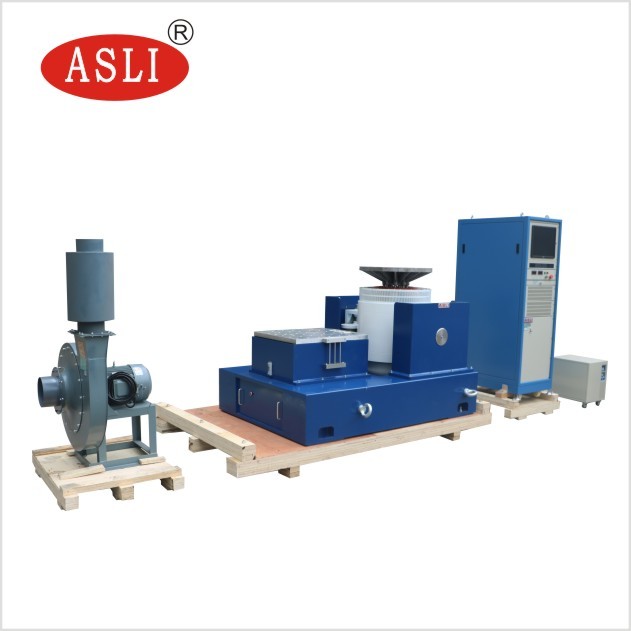

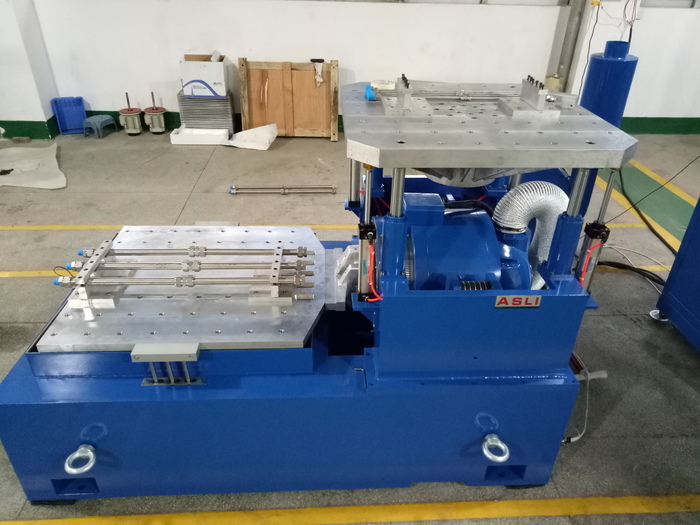

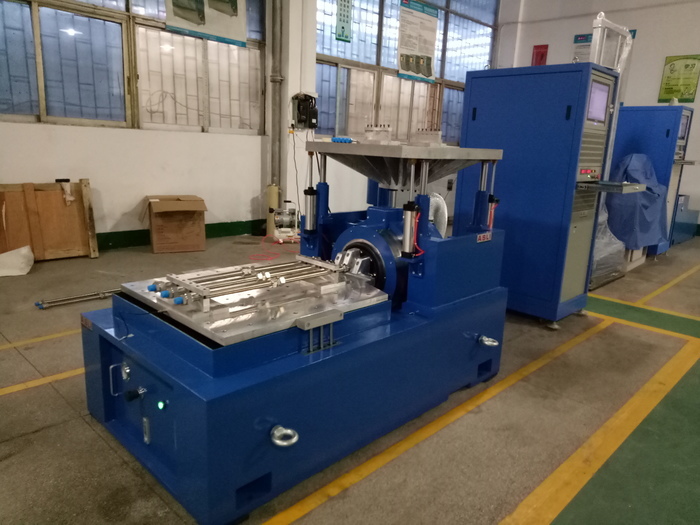

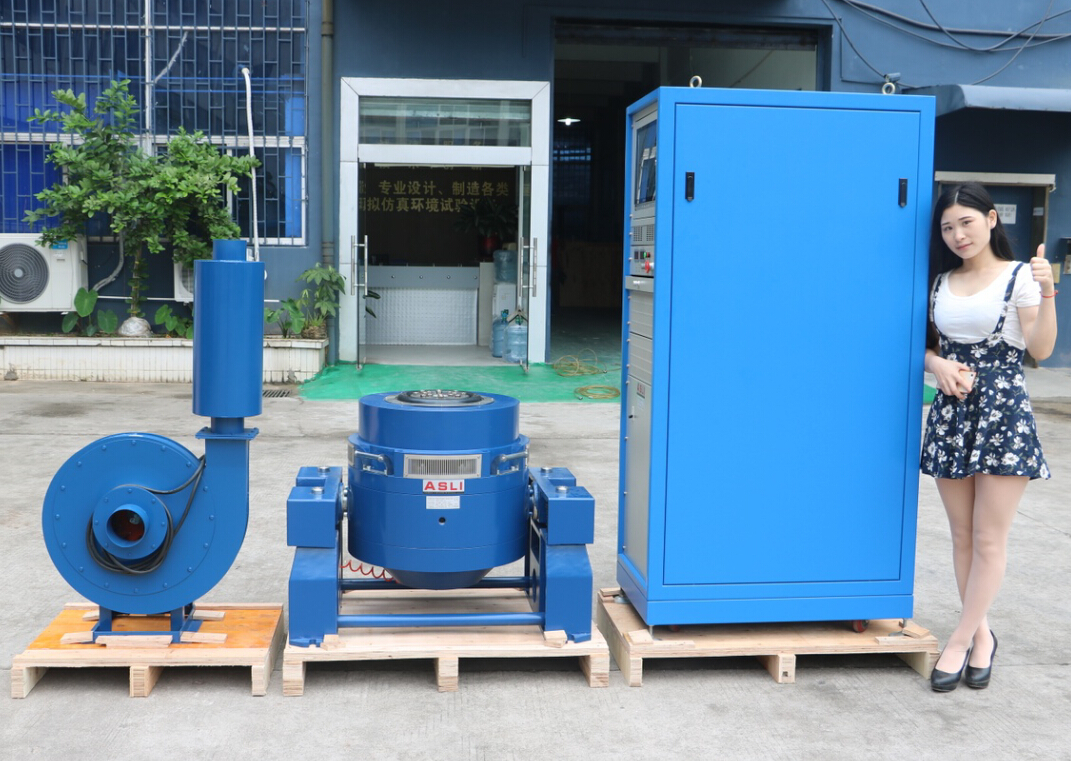

Product Pictures

Dynamic Shaker Table/vibration Tester 4Dynamic Shaker Table/vibration Tester 6

Dynamic Shaker Table/vibration Tester 8

Dynamic Shaker Table/vibration Tester 10

Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

 Dynamic Shaker Table/vibration Tester 12

Our Services

Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.

Our concept:
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.

Company Information

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. vertical mechanical vibration testing machine is our star products , and we had obtained the CE certification for this machine .

Dynamic Shaker Table/vibration Tester 14

FAQ

Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.



Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.



Q3. What is your terms of delivery?
A: EXW, FOB, CIF.



Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Relative Products:

Dynamic Shaker Table/vibration Tester 16 Dynamic Shaker Table/vibration Tester 18 Dynamic Shaker Table/vibration Tester 20
Temperature Humidity Test Chamber Acceleration Mechanical Shock Tester Salt Spray Test Chamber



If you need more information about Dynamic Shaker Table/vibration Tester , please don't hesitate to send your inquiry.
